Bulkhead covers
3.7 Hours

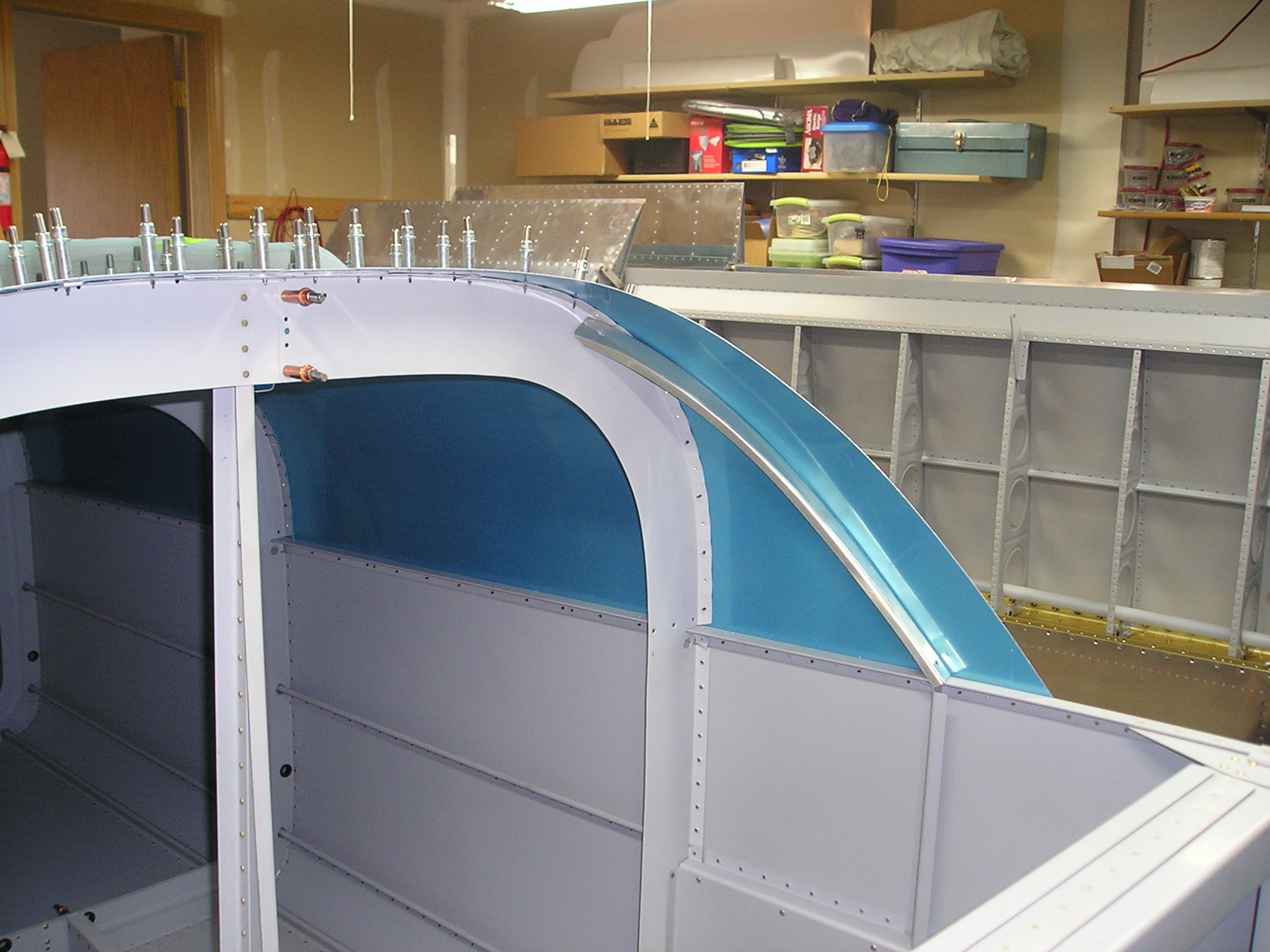

Fitting F-6111-L full size
Started fluting and drilling the F-6111 ribs to fuselage. They also require twisting and trimming to make them fit correctly.

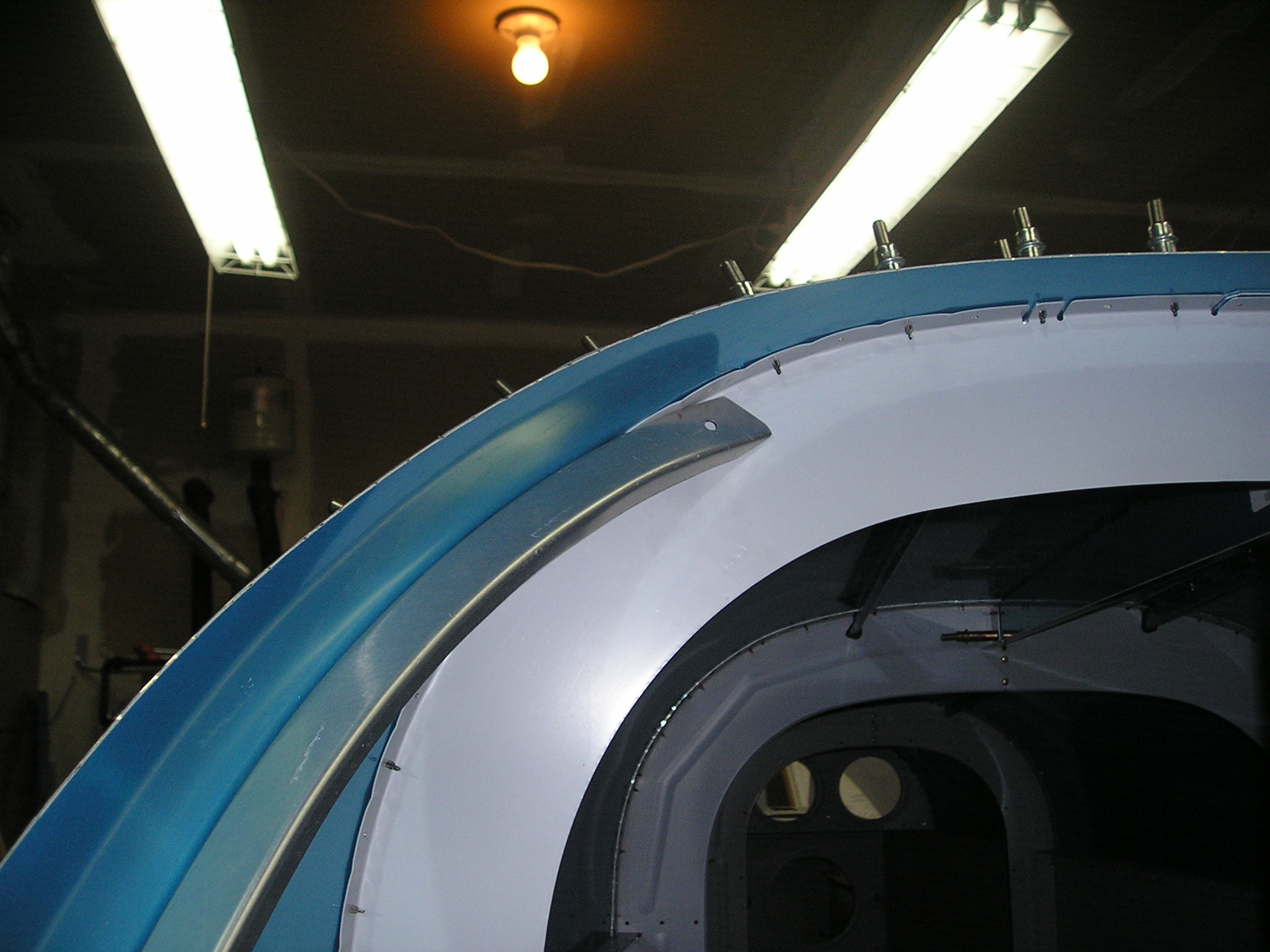

Upper end of F-6111-R full size
The end of the ribs needs trimming so it just clears the bulkhead

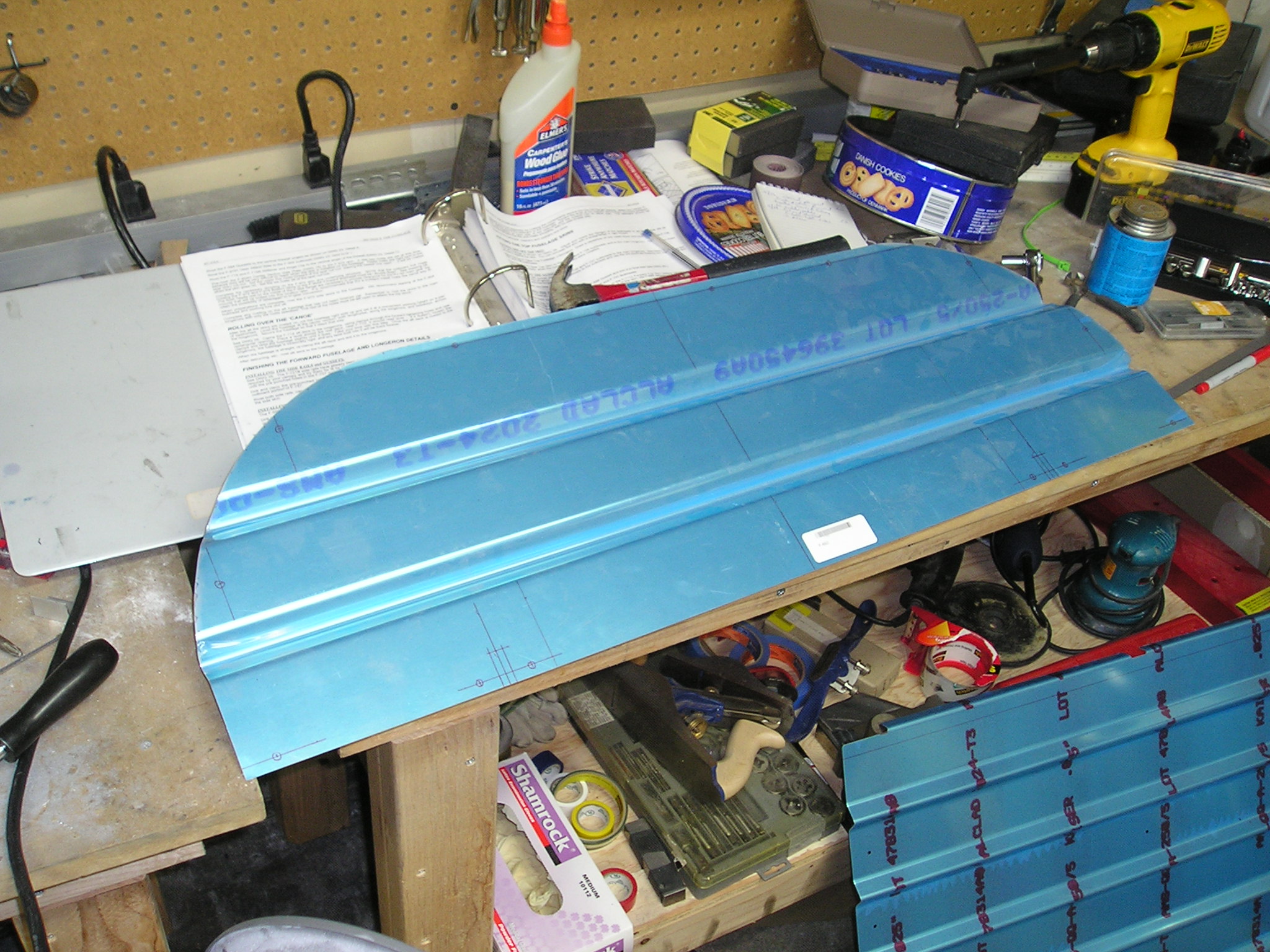

Trimming F-652 upper bulkhead cover full size
This needs to be trimmed as specified in the plans. Once I did this, drilled it to the F-751 lower cover. After this, cut the F-637-C/B angles for the seat backs.
