Assembling rear spar

6.0 Hours

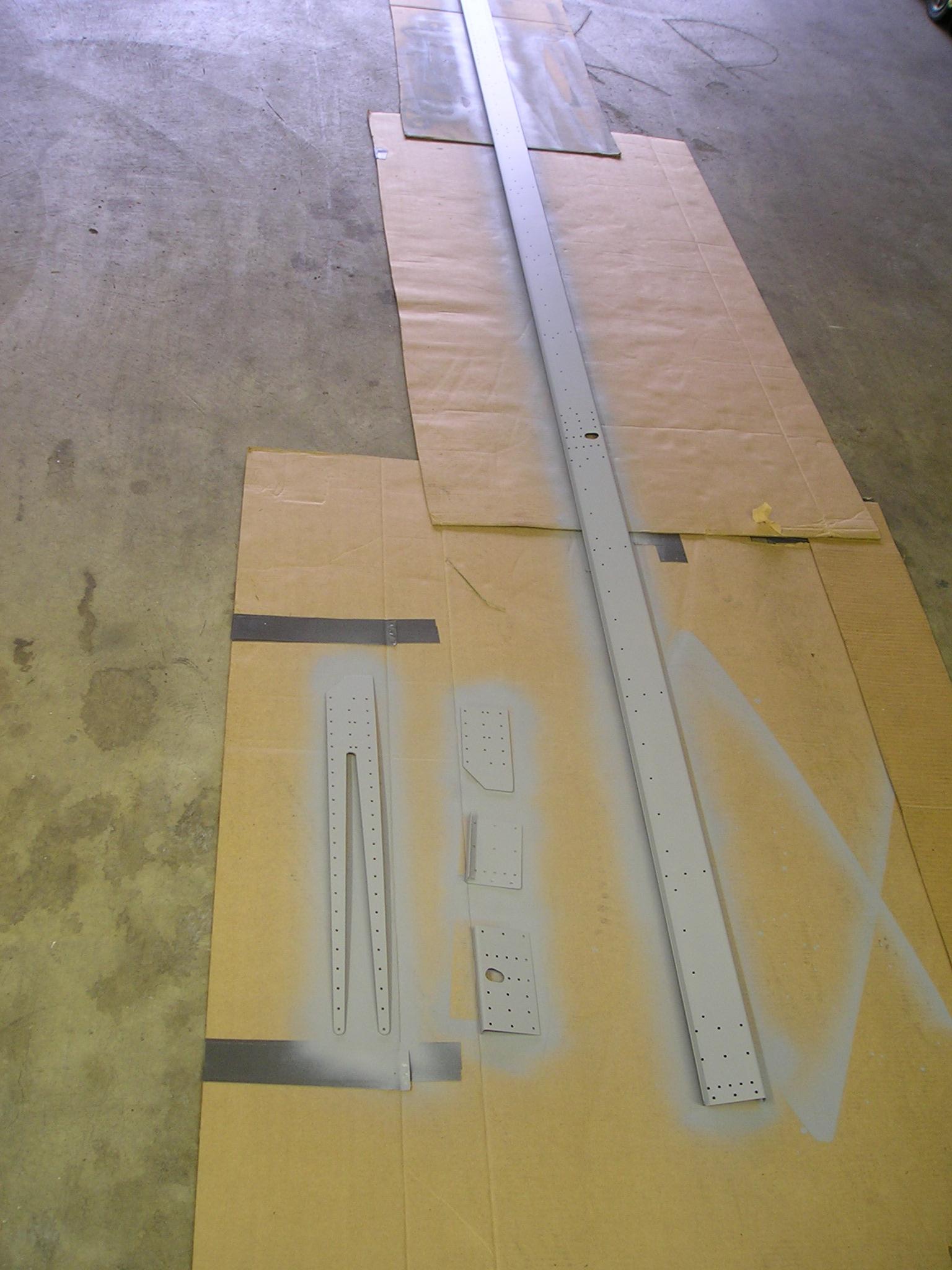

Priming rear spar parts full size

I didn't take pictures of the inboard parts drilling. They can be seen in later pictures during the riveting. Here all the parts have been cleaned, and primed

Inboard end of rear spar full size

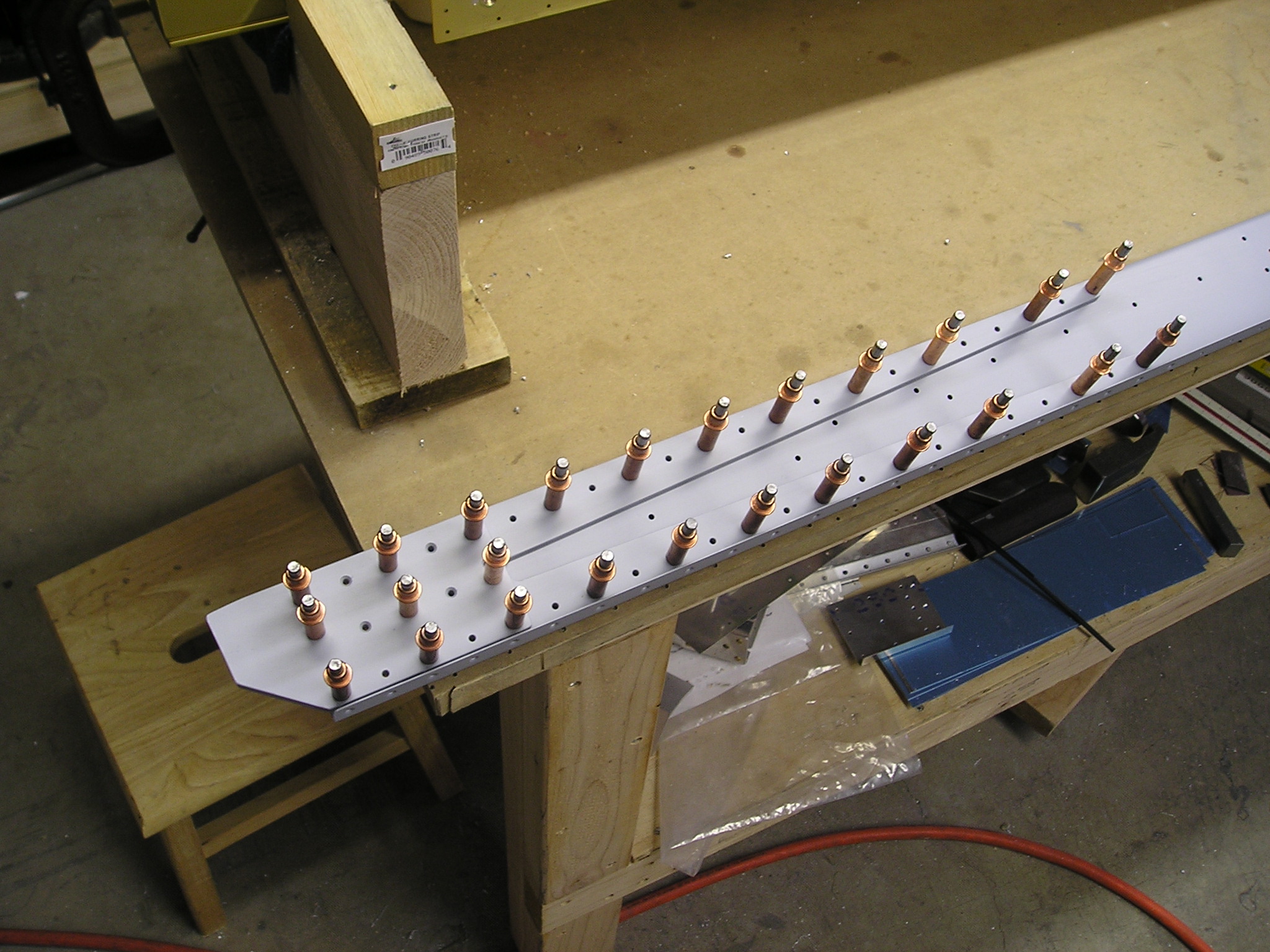

Cleco'd the W-907C, W-907B doublers to the W-907A spar

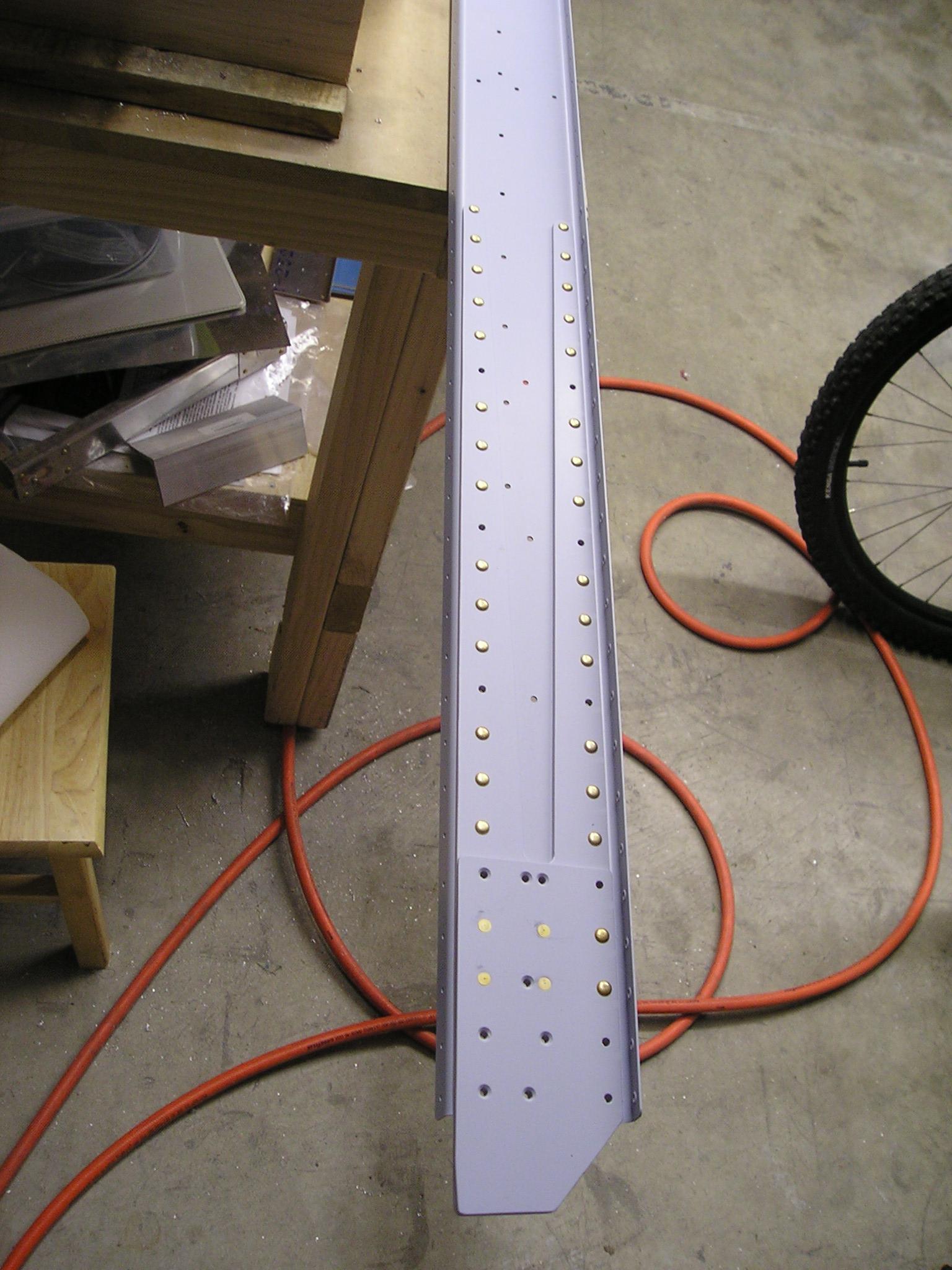

Rivets installed in spar full size

Here is the finished rivets. Took quite a while to make sure I didn't have rivets installed where they shouldn't be (yet).

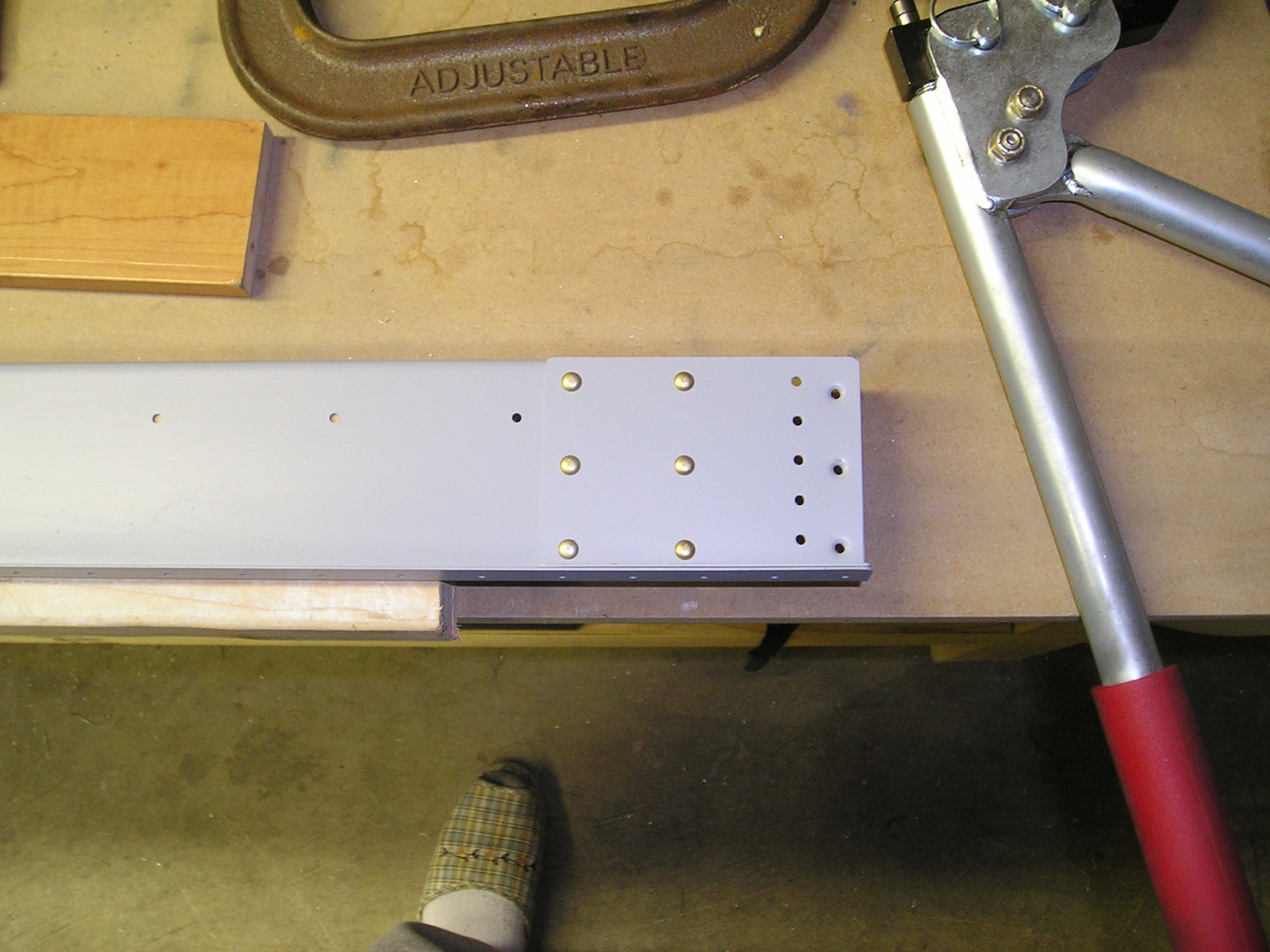

W-907D riveted full size

Not many rivets go in this one now

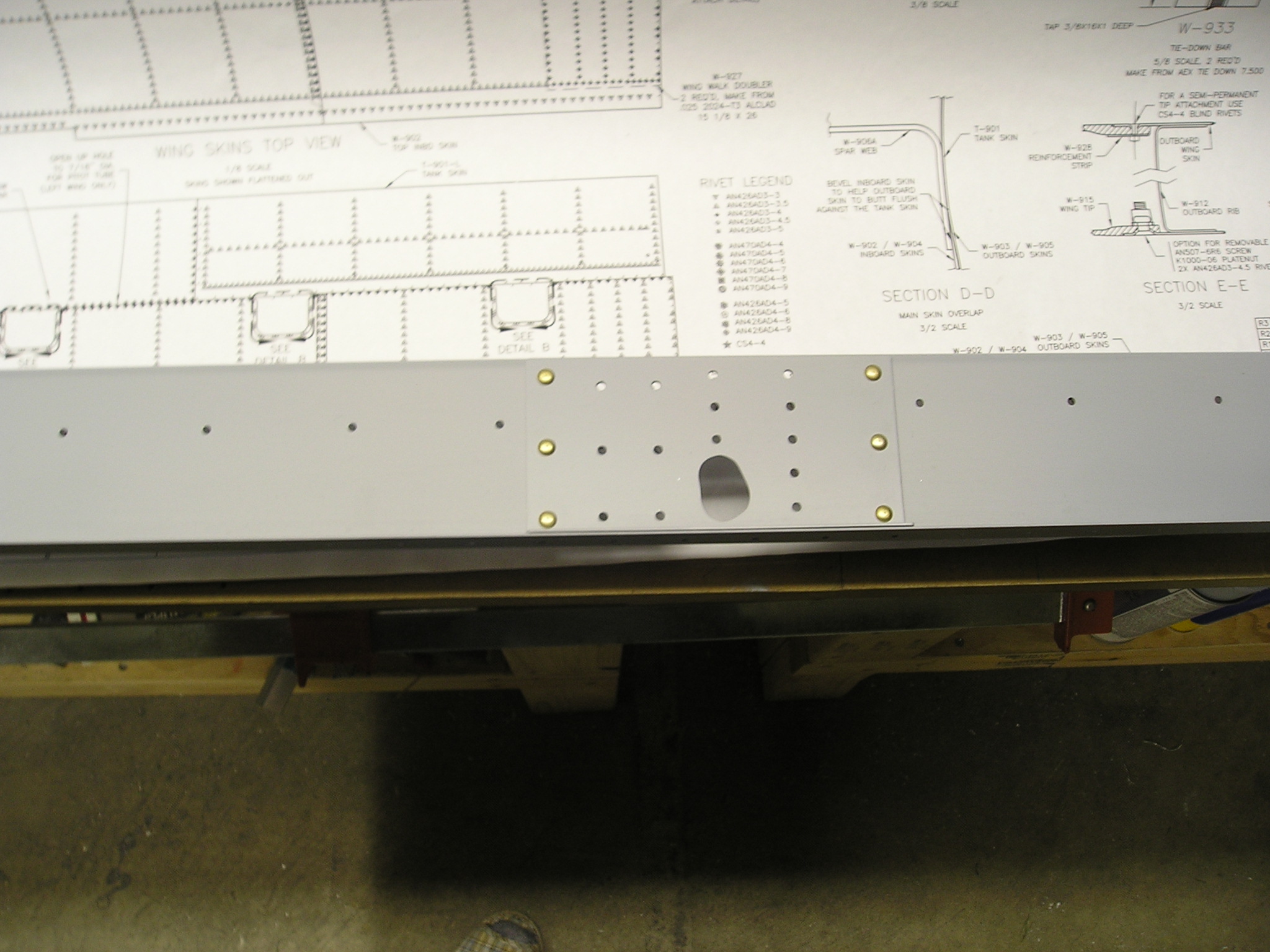

W-907E riveted full size

Here are the rivets in the W-907E doubler. I dimpled both the doubler and the spar for the outboard rivet holes. Since they are .040 thick dimpling is ok.
