Assembling hs spars
7.0 Hours

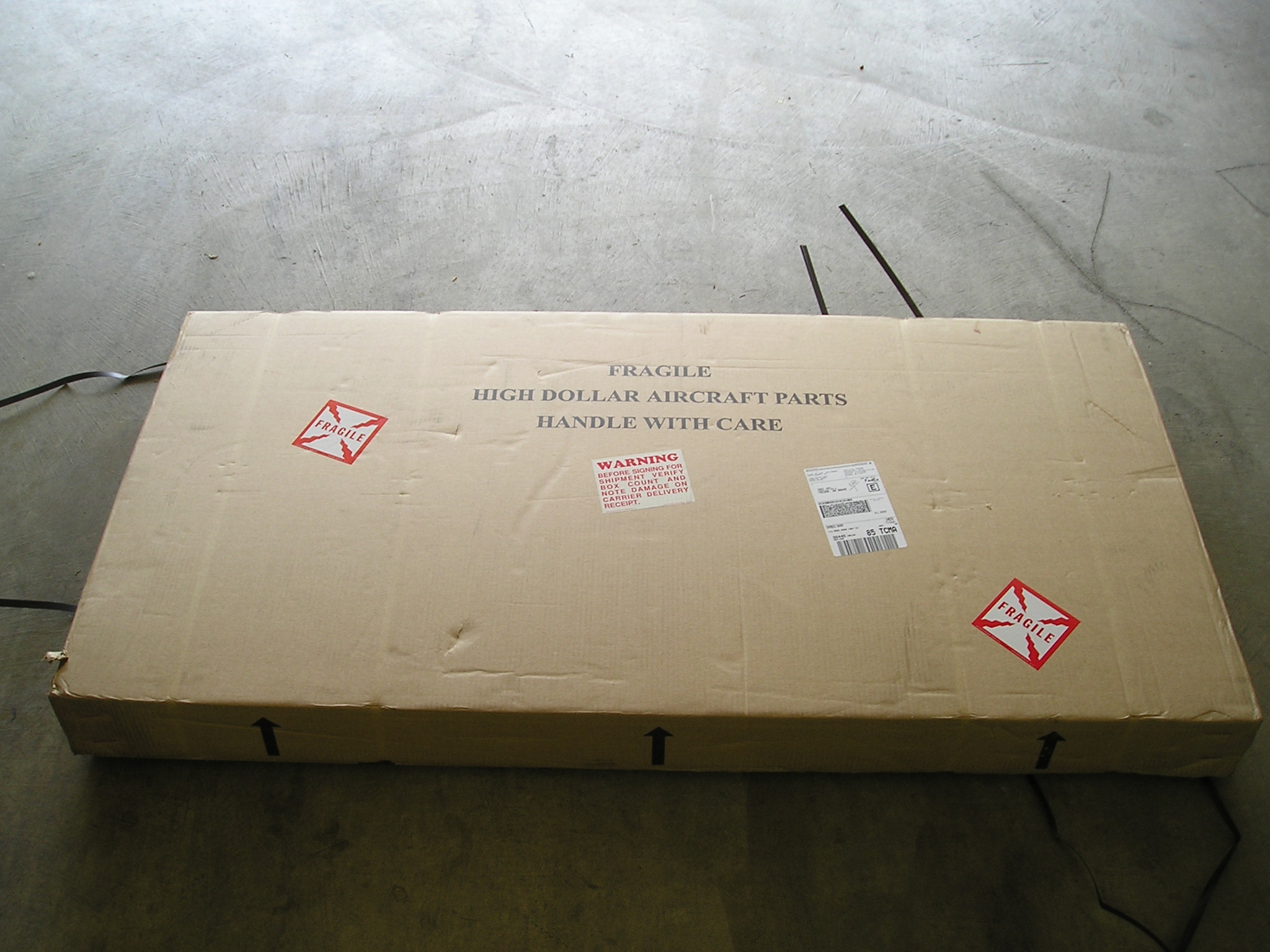

empennage box 2 full size
The second box came today. This one contained the skins and the spars and some other pieces. A lot less stuff than the other box

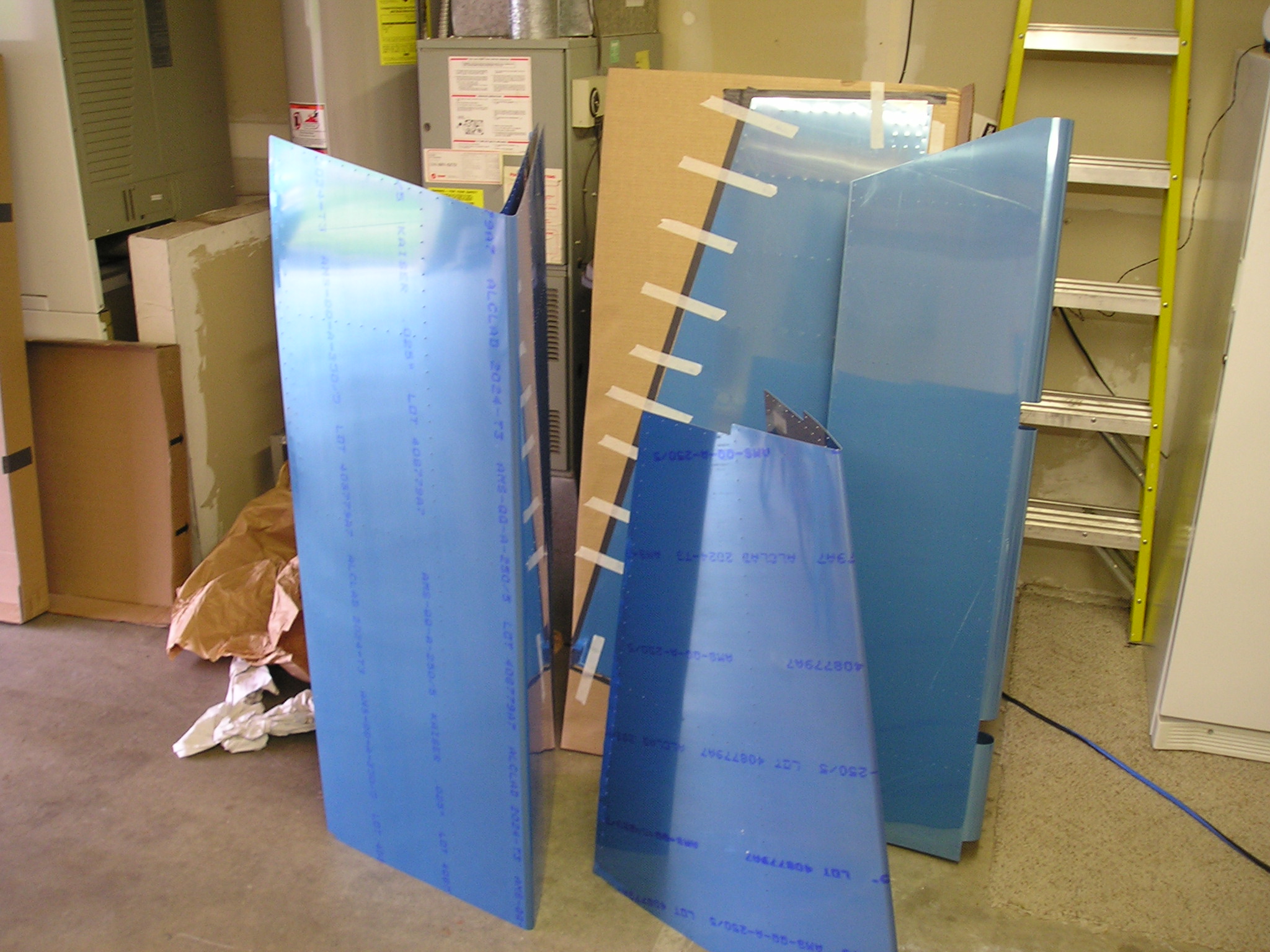

Skins unpacked from the box full size
This is the skins that were in the box, sitting out

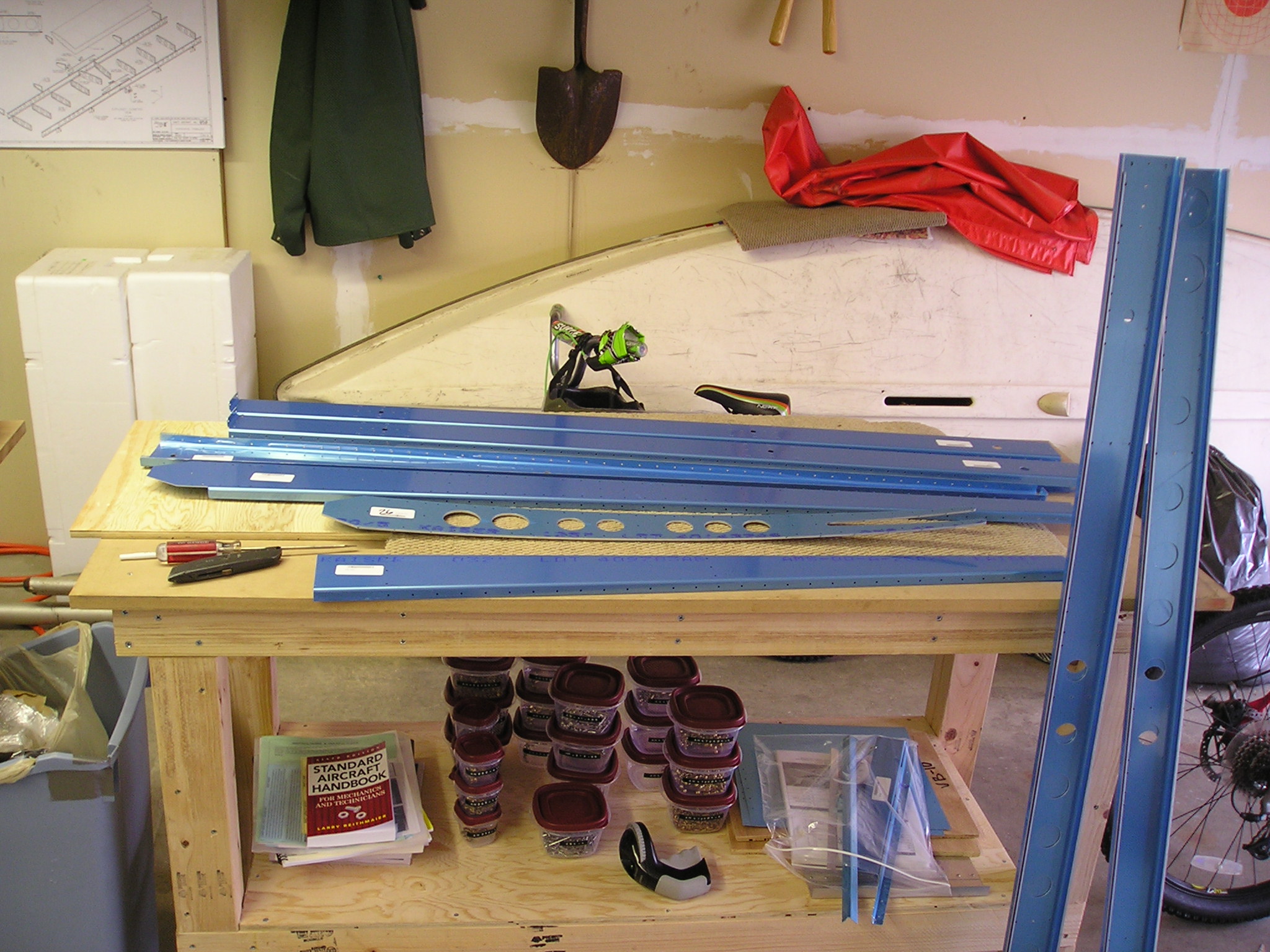

Empennage spars full size
The spars.

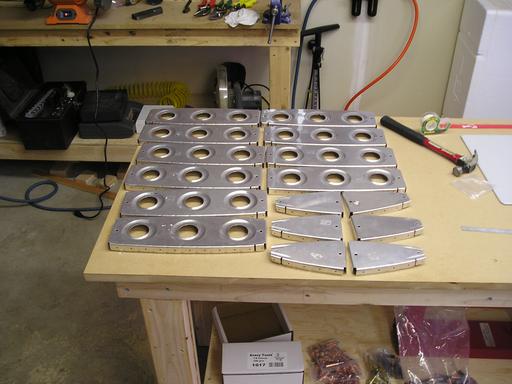

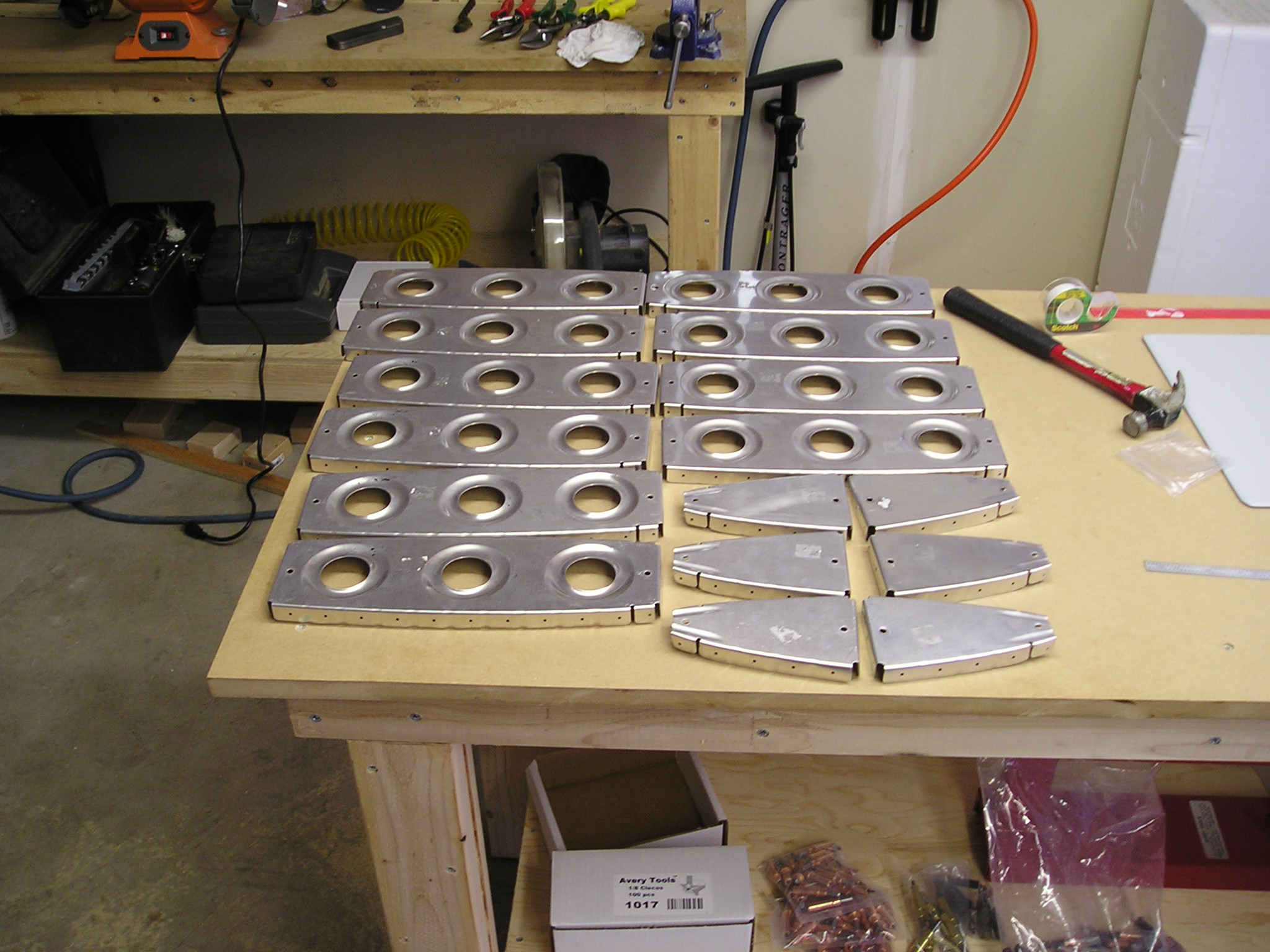

Horizontal stabilizer ribs full size
I am getting ready to deburr and flute the horizontal stab ribs.

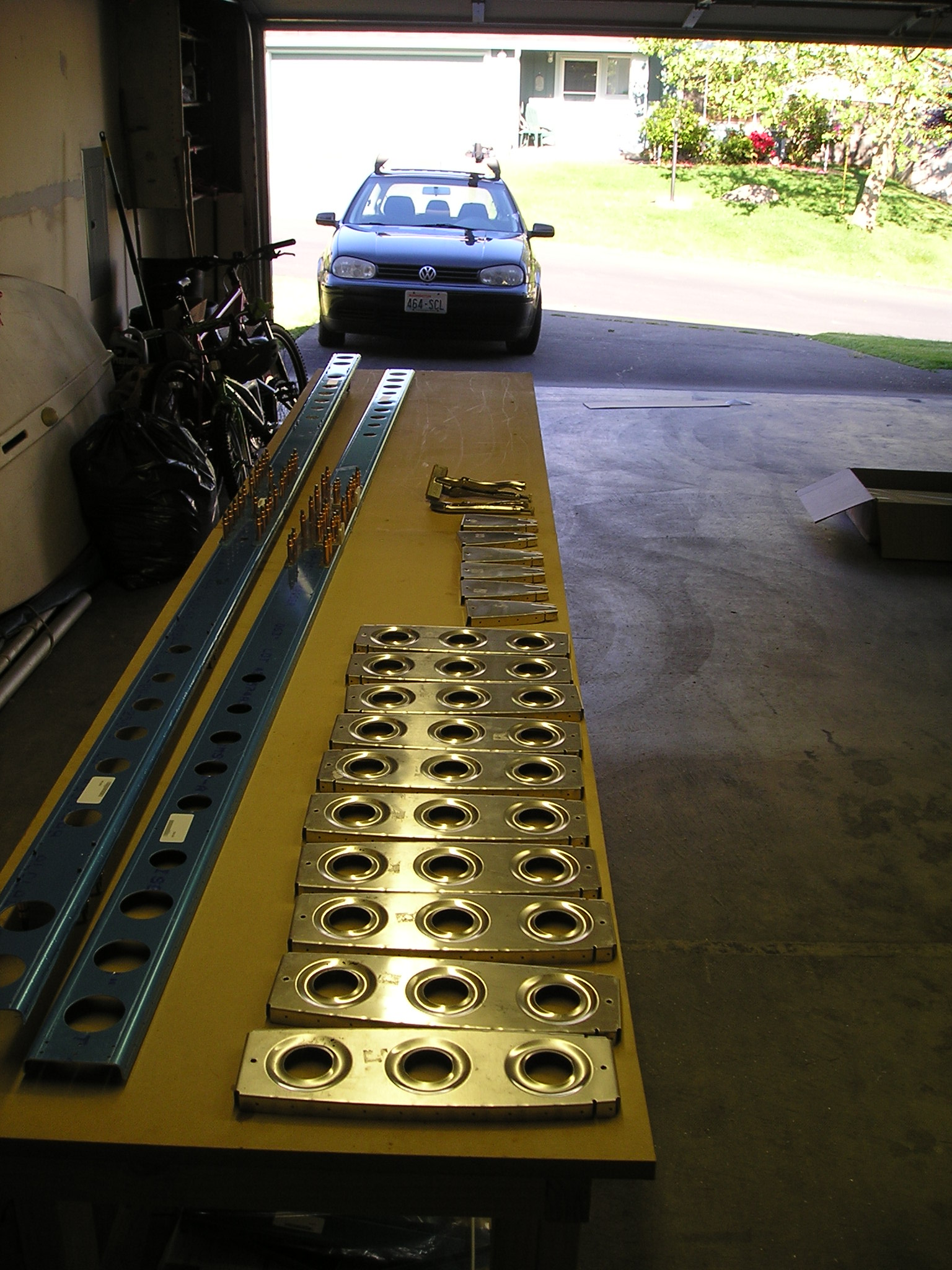

ribs and spars full size
The ribs are almost all deburred and fluted. I didn't take a picture while I was assembling the forward and rear spars. They are sitting on the table. They have been match drilled with the splice doublers, attach angles, and some of the hinge fittings.
