Assembling elevator skeleton
4.0 Hours
Nutplates on trim motor access panel cutout full size

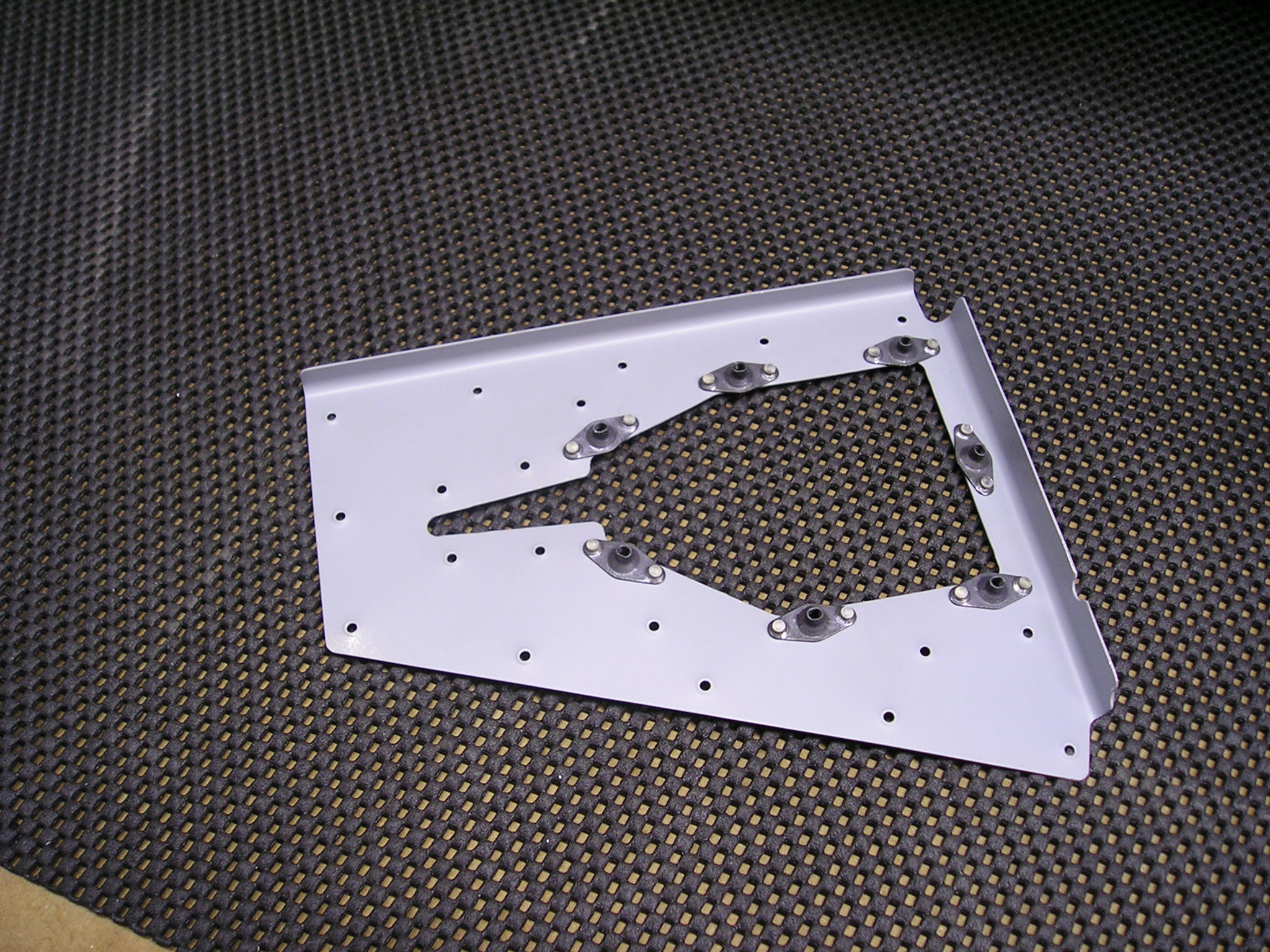

Put on the 7 nutplates for the access panel doubler This shows the nutplate side fo the doubler

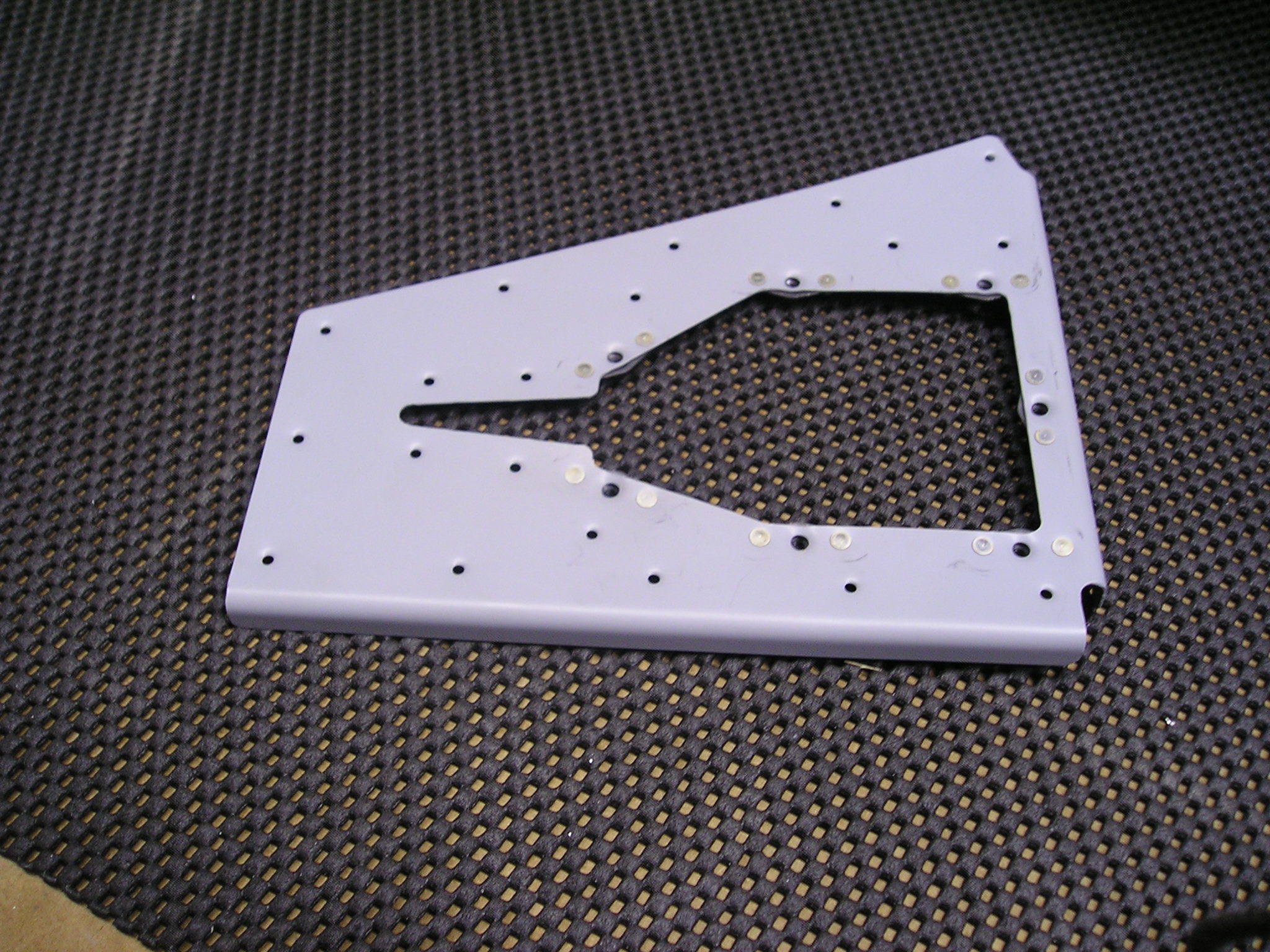

finished access panel doubler full size
A picture of the bottom of the access panel with nutplates installed

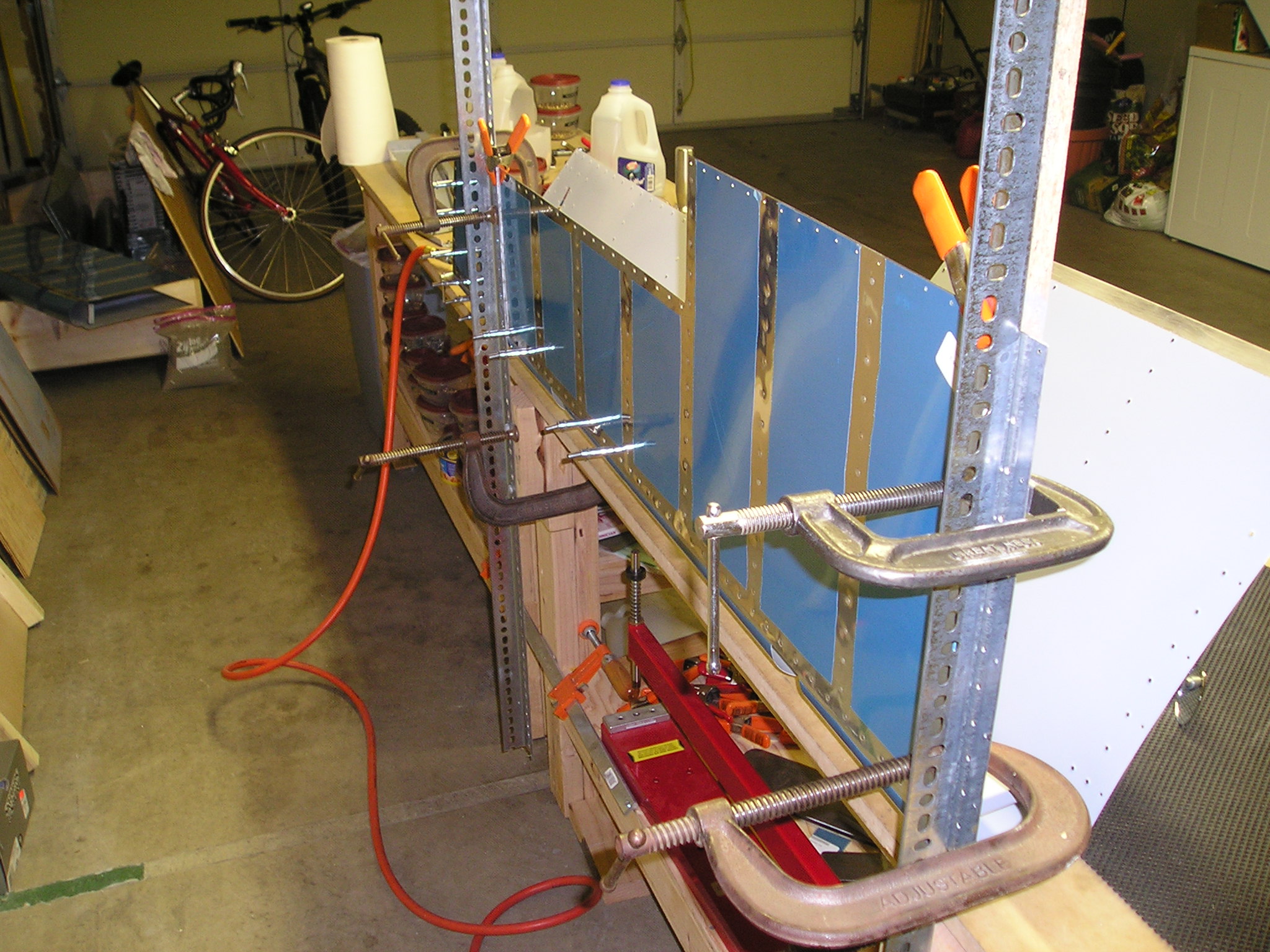

Setup for riveting top of spar to skin full size
The next step was to rivet the skin to the top of the spar. This shows the 2 angles I clamp to the table to support the skin and spar while it is being riveted

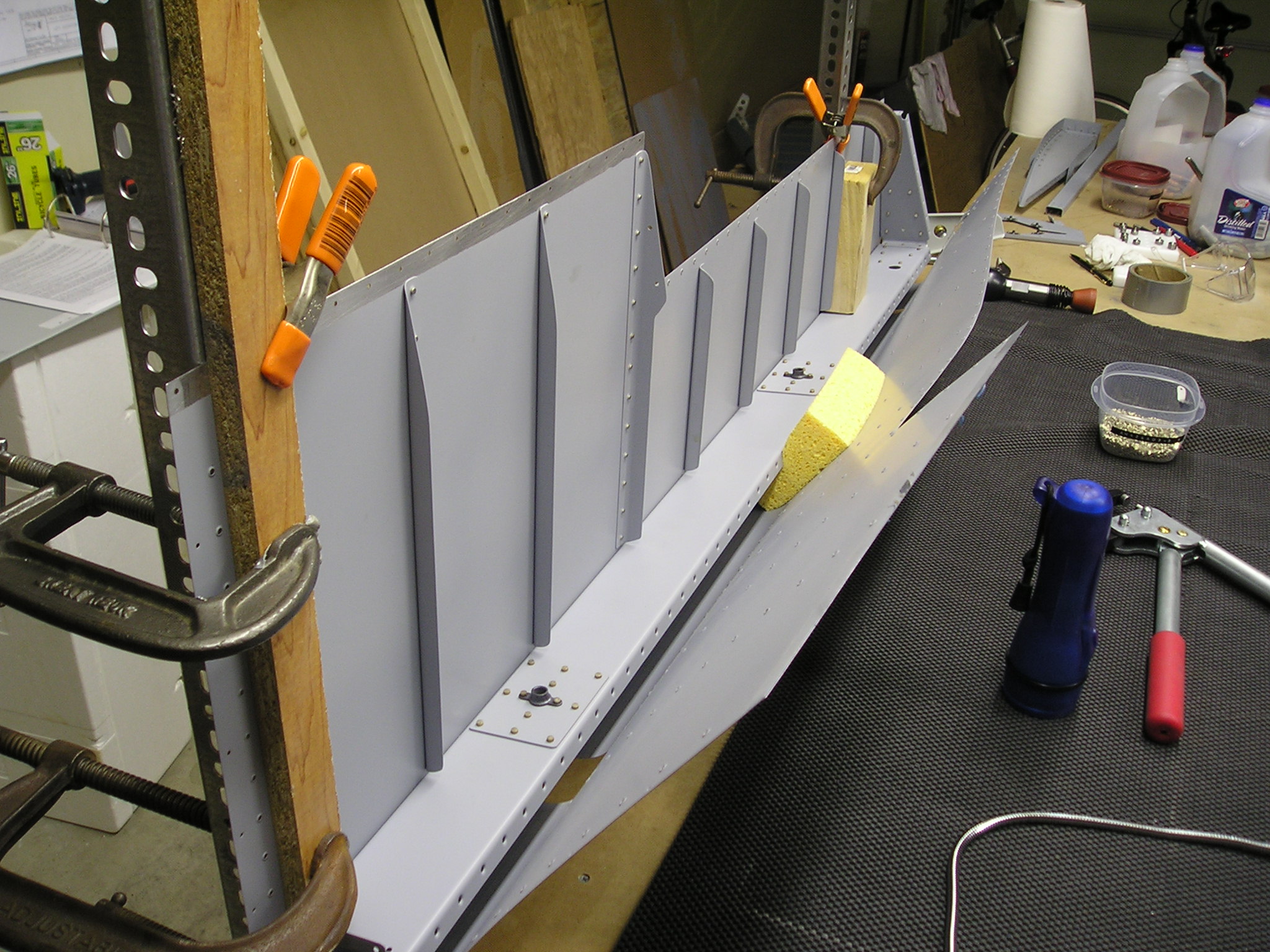

Top of spar and skin riveting continued full size
A sponge stuck between the skin and spar helps hold it open so you can get your hand in behind it to hold the bucking bar in place, blind.

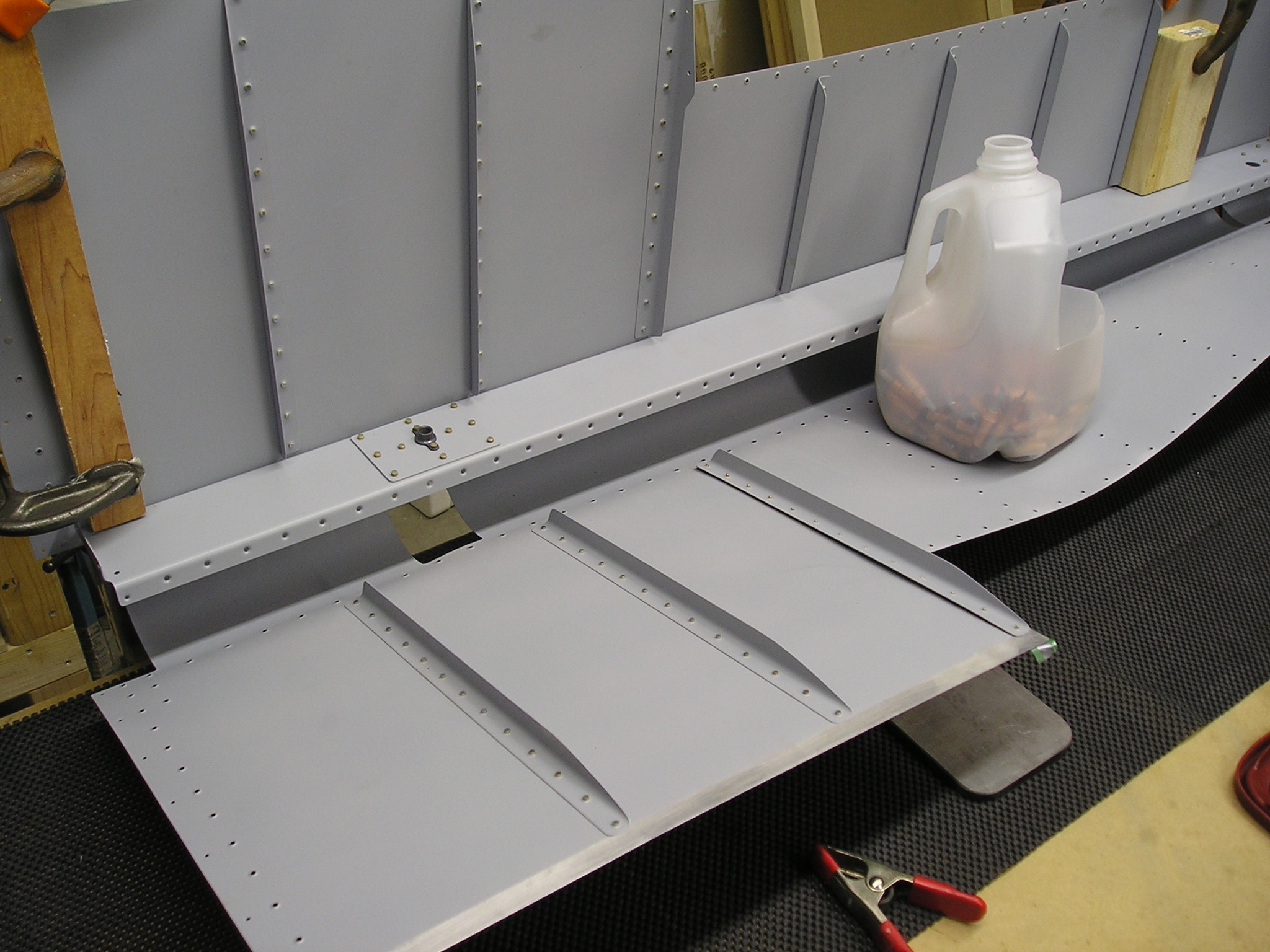

Back-riveting stiffeners to bottom skin full size
After the top of the spar is riveted, the stiffeners are riveted to the bottom skin
