Drilling floor pan for F-6124

Drilling floor pan for F-6124 full size

The aileron trim has a bracket between 2 seat ribs, it is has a screw through the seat floor, drilling the floor.

Aileron trim bracket

Aileron trim bracket full size

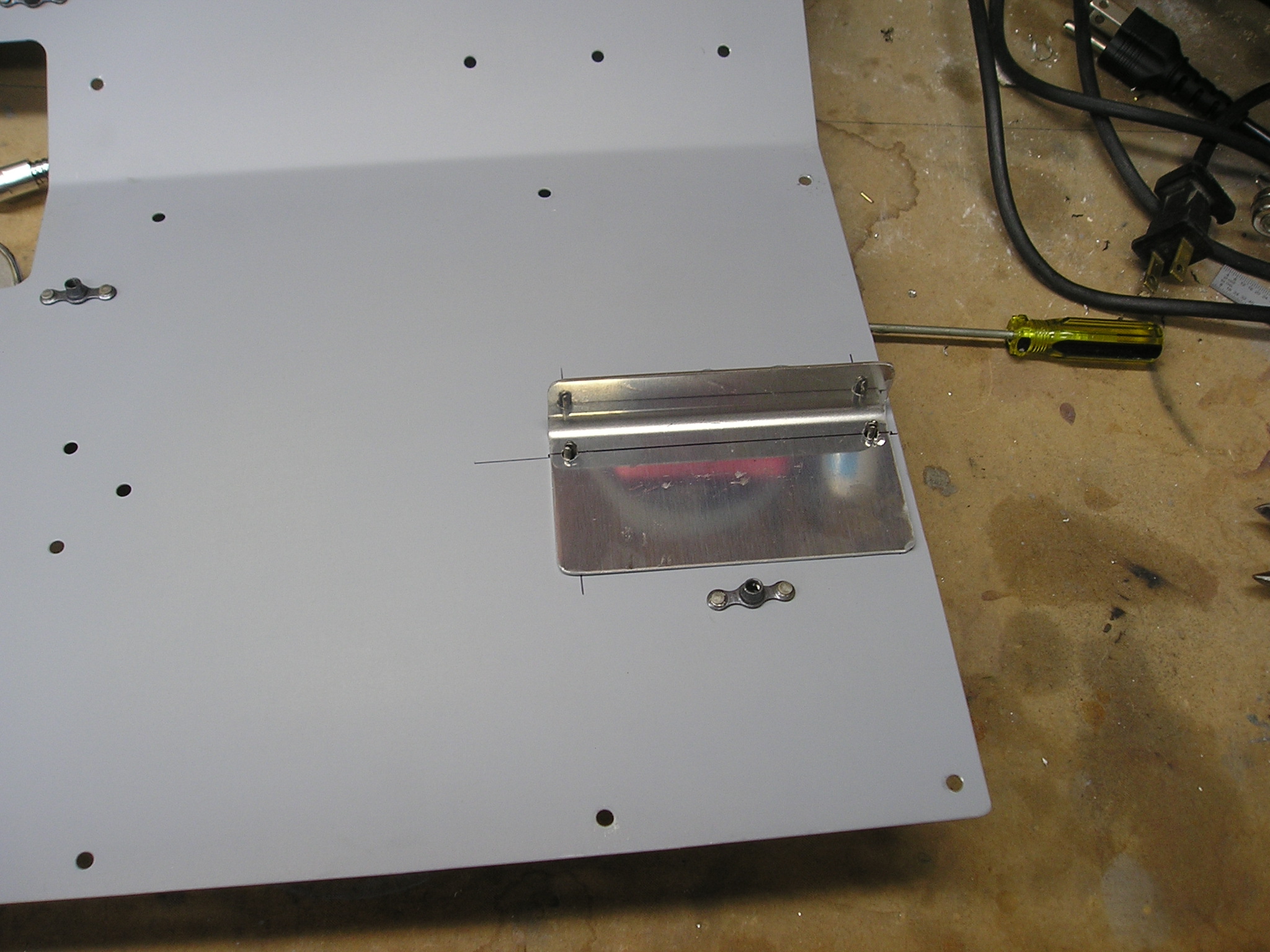

Made the bracket, back-drilled through the floor.

Installed bracket between ribs

Installed bracket between ribs full size

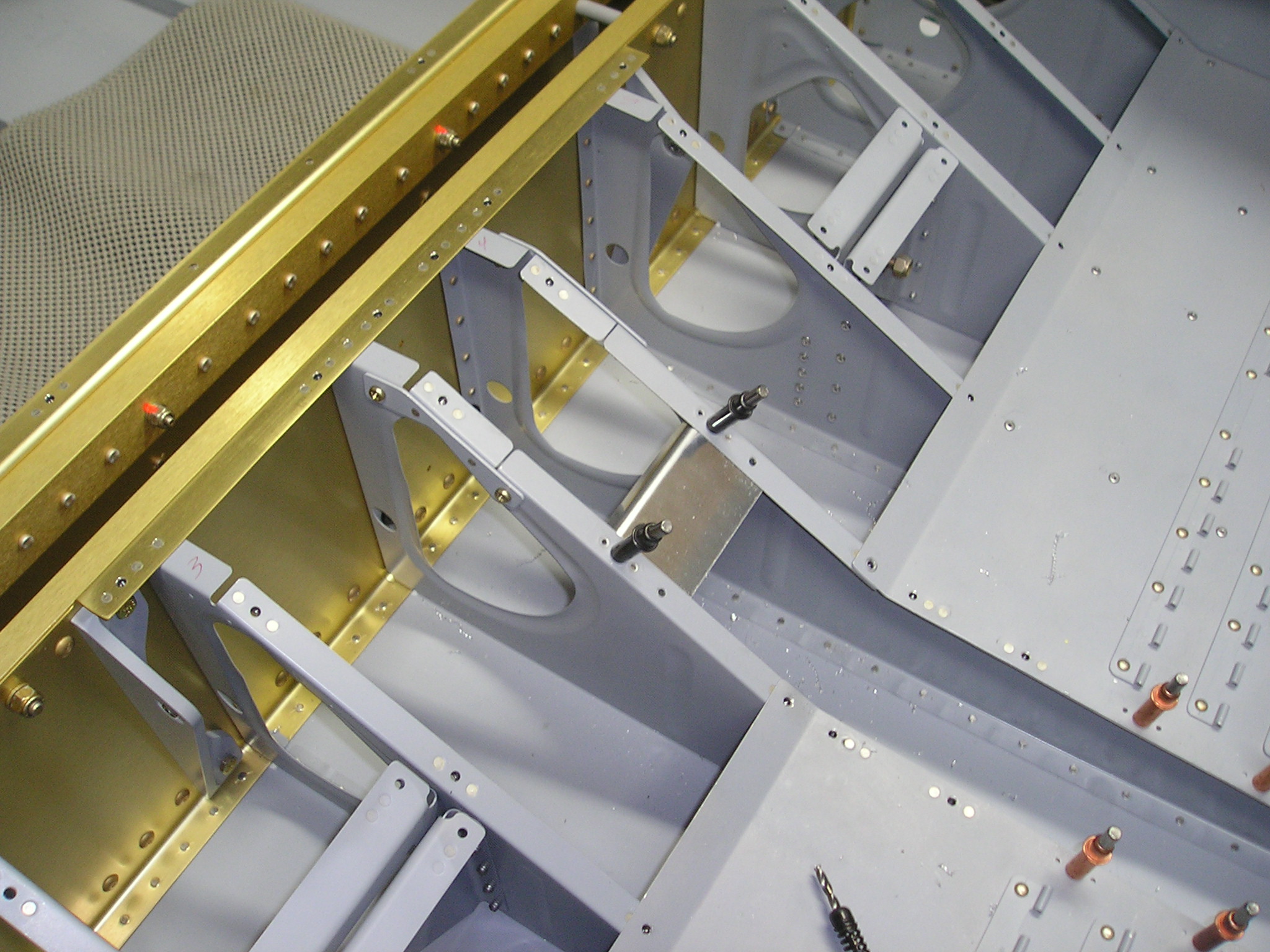

The bracket is fitted in place between the seat ribs and drilled.

F-7123 pivot block

F-7123 pivot block full size

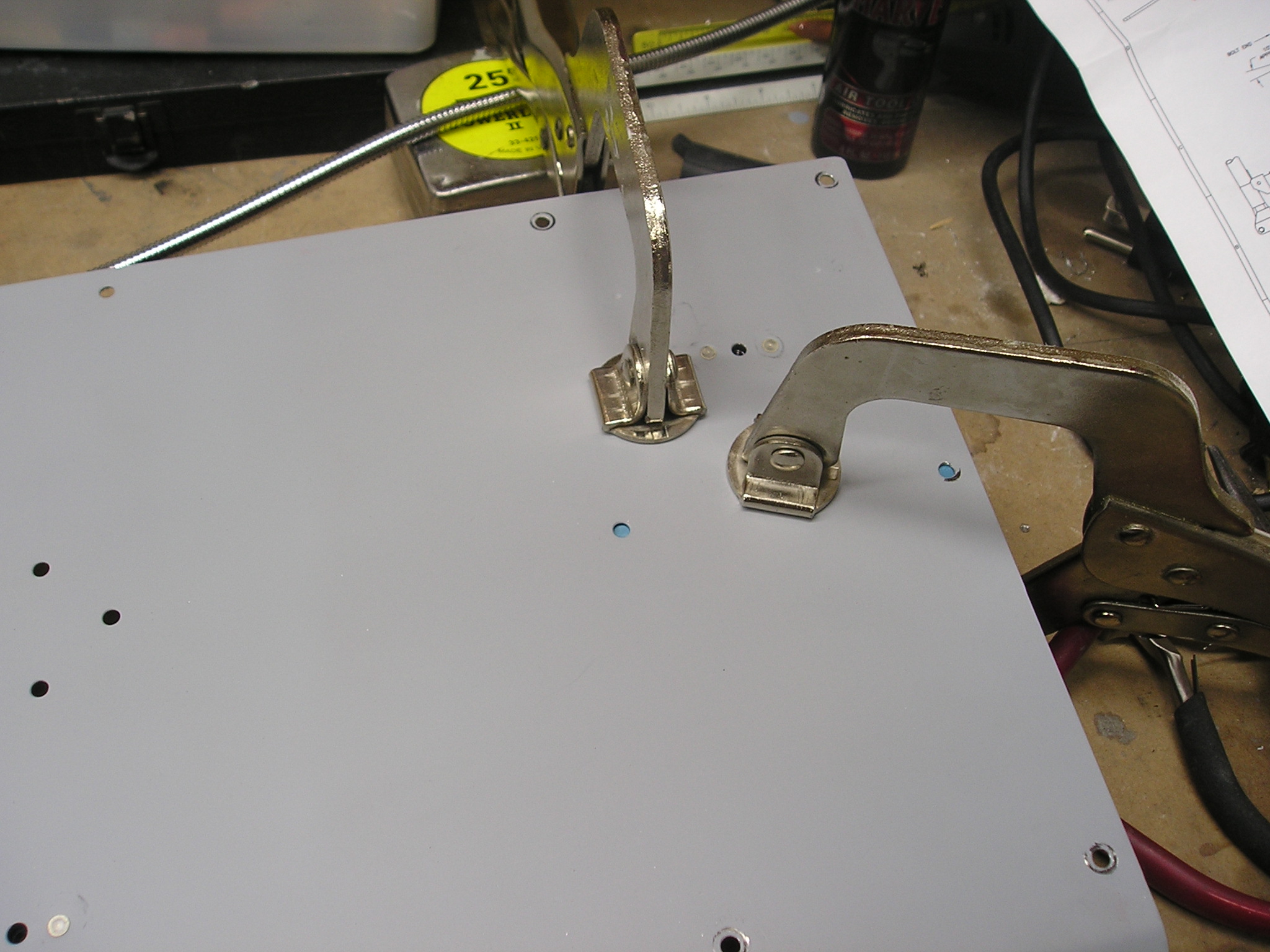

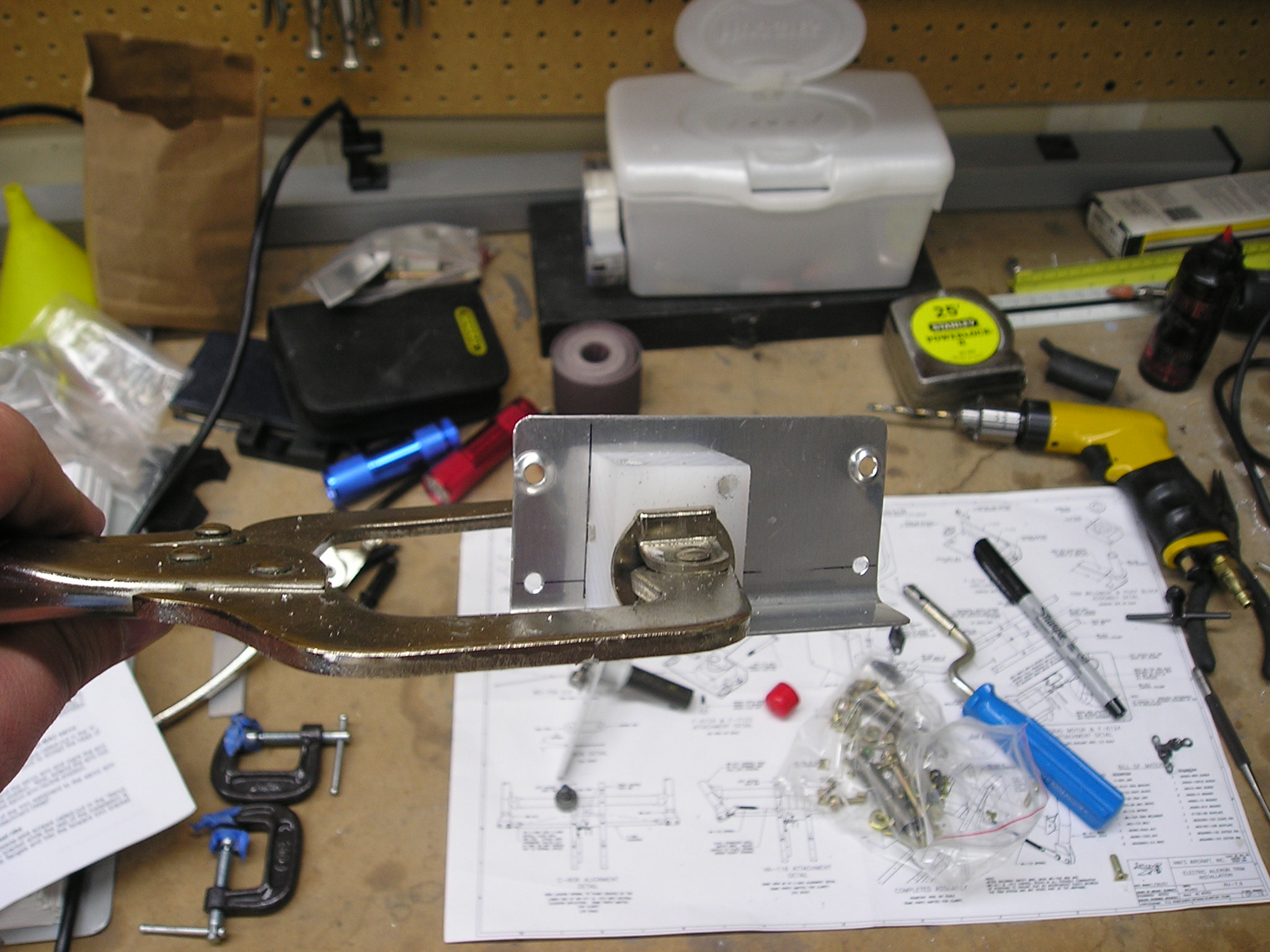

Fabbed the F-7123 pivot block. Clamped in place on the bracket and drilled.

Nutplates in trim bracket

Nutplates in trim bracket full size

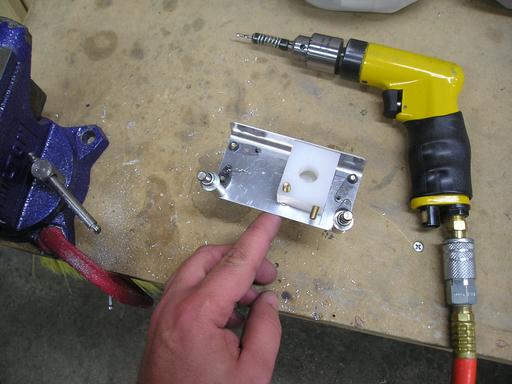

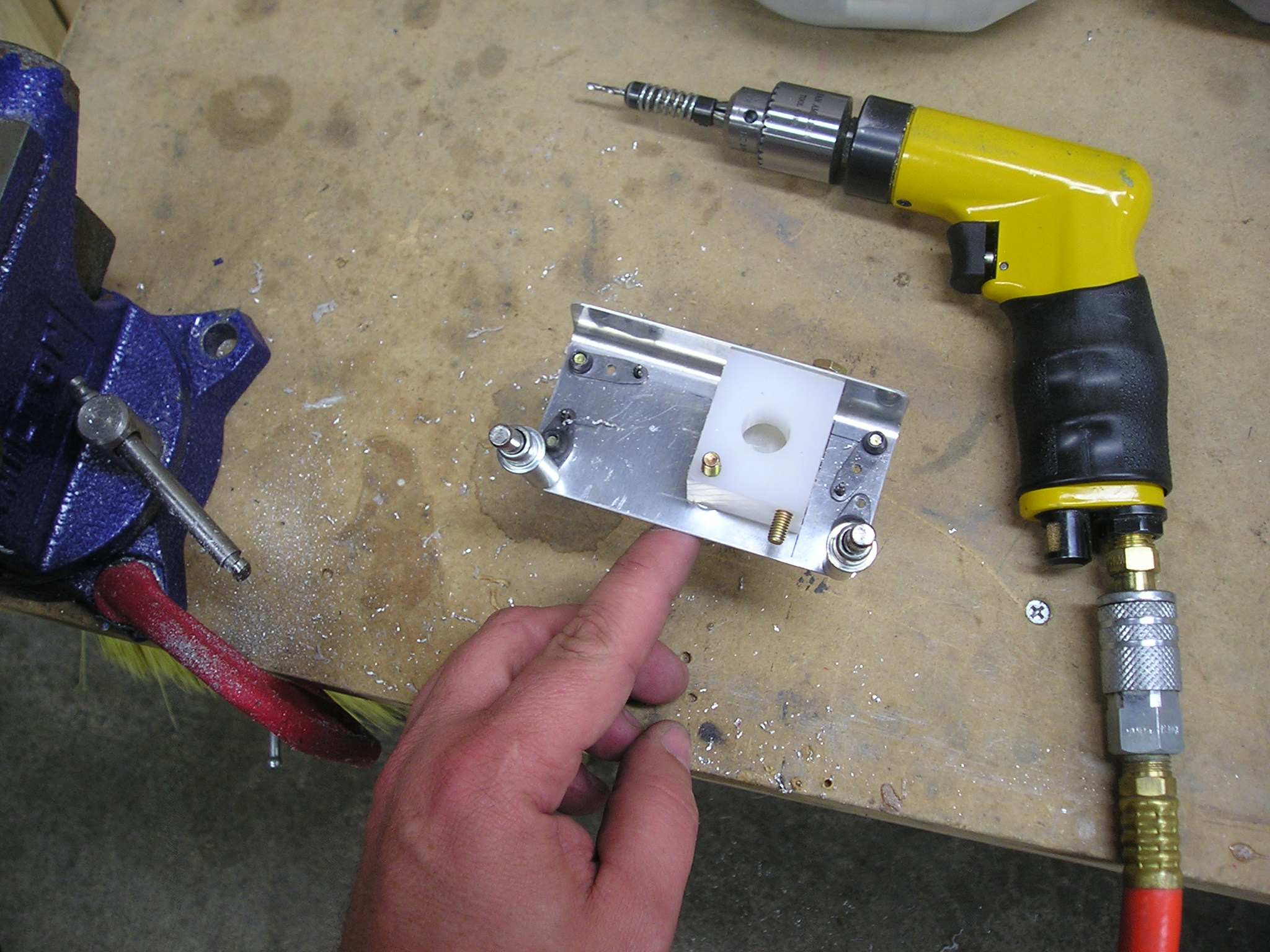

Drilled, and riveted nutplates in trim bracket.

WD-756

WD-756 full size

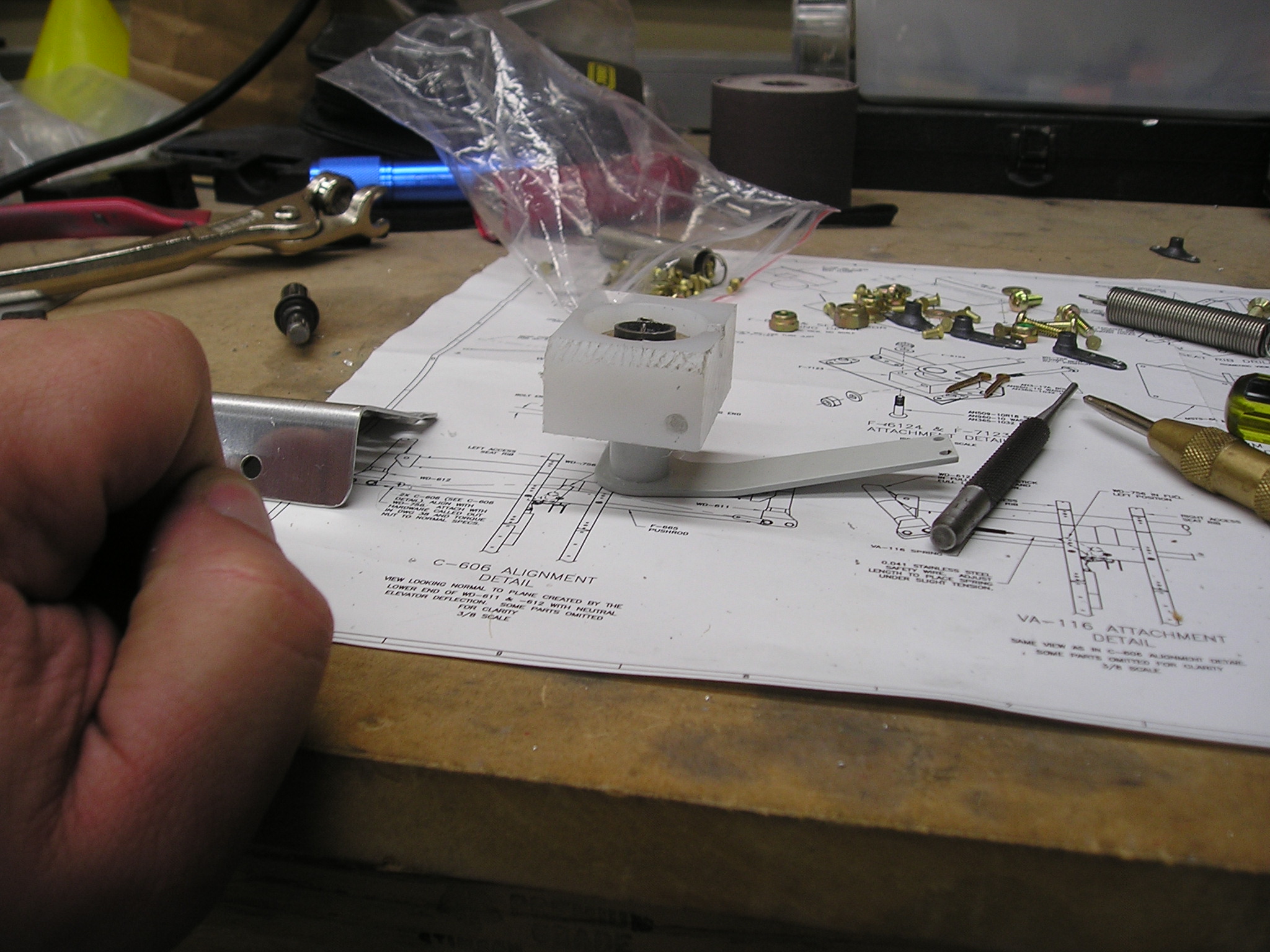

Bent WD-756 trim arm and drilled for cotter pin.

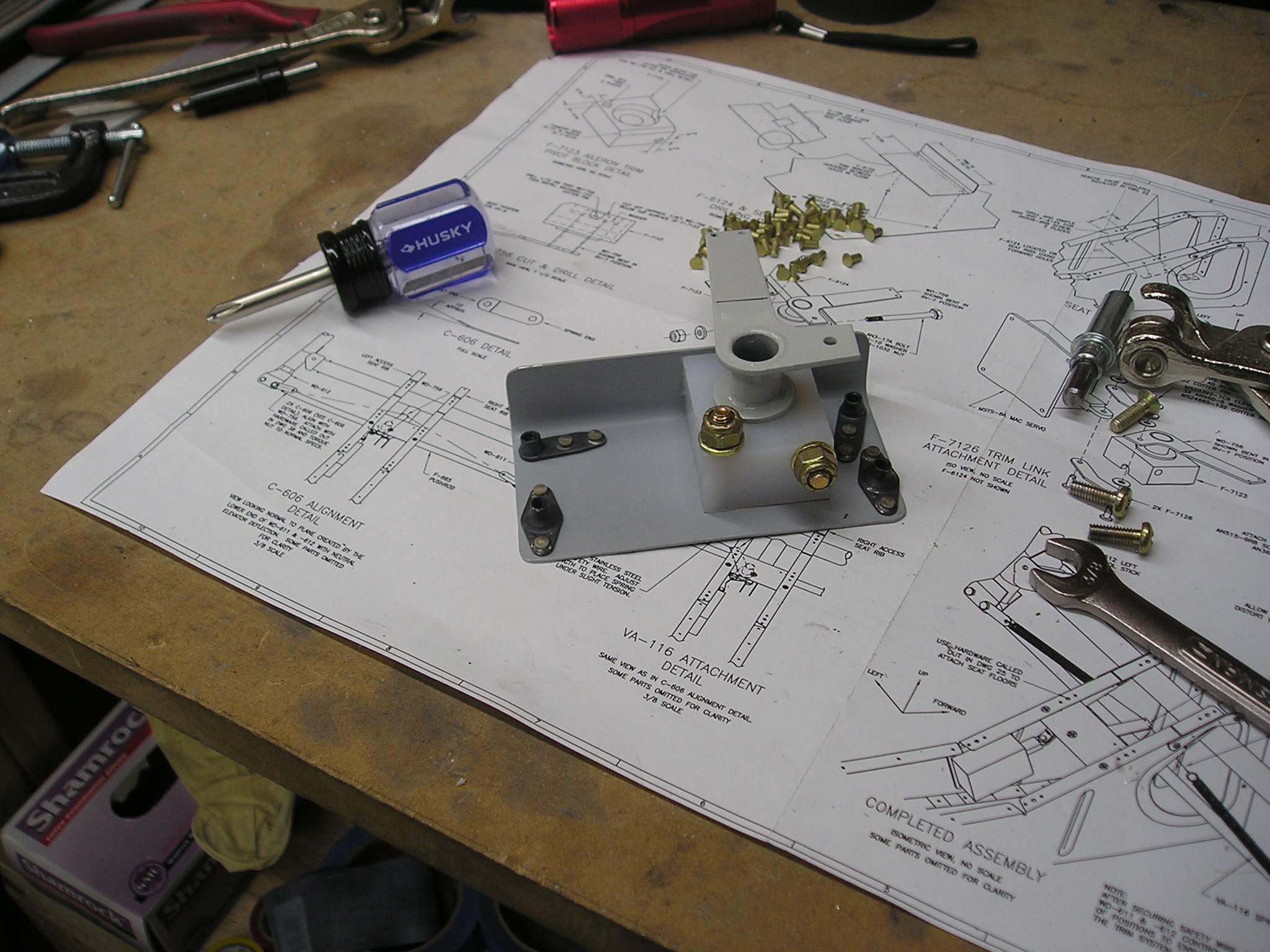

Assembled trim arm and bracket

Assembled trim arm and bracket full size

Bolted the trim arm assembly together.

Installed aileron trim arm

Installed aileron trim arm full size

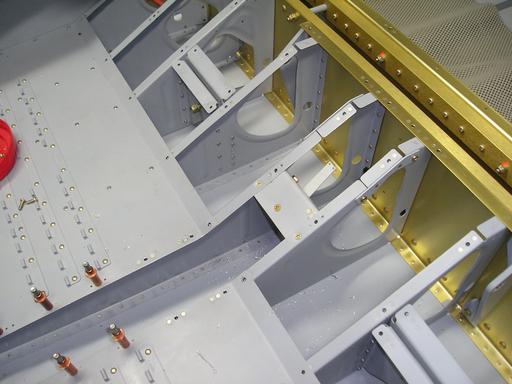

Screwed assembly into place.
