Riveting Vertical Stabilizer
2.0 Hours

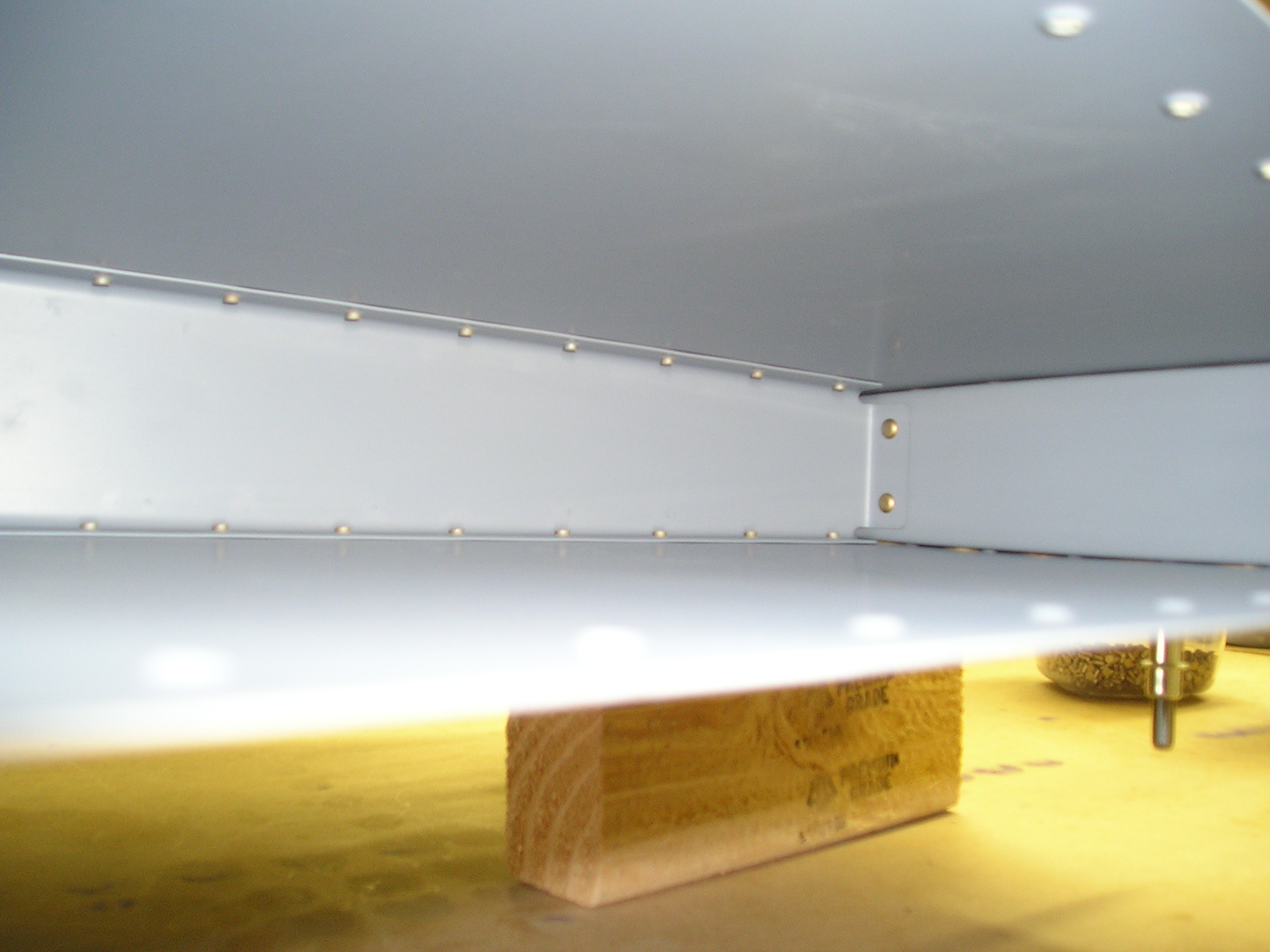

Riveting spar to skin full size
Started riveting the spar and center rib to skin. This went very well, all the rivets were good, none needed to be redone. This is a view of the tip rib and the forward spar

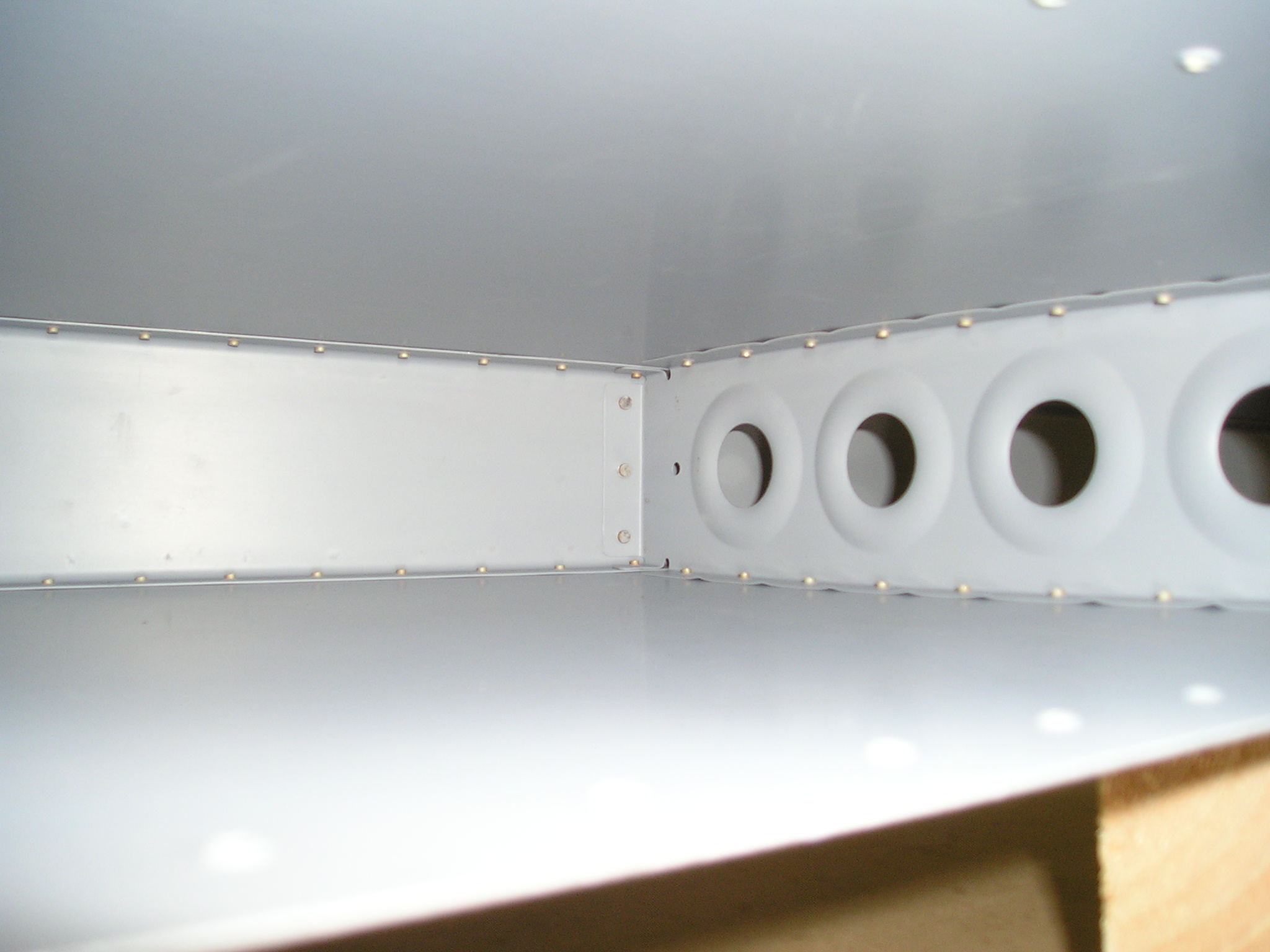

Forward spar and middle rib full size
This is a picture of the middle rib and forward spar after all the rivets were in

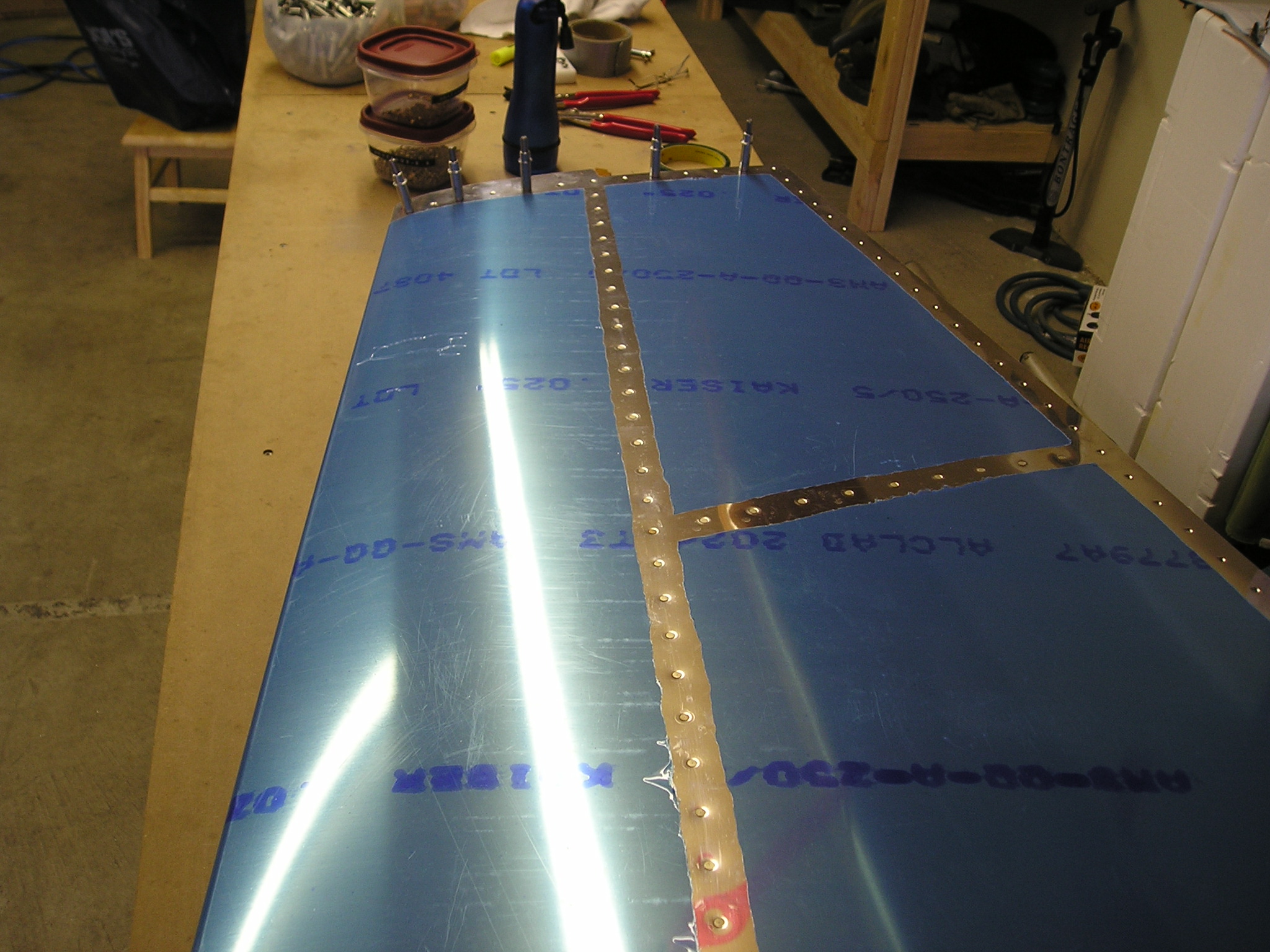

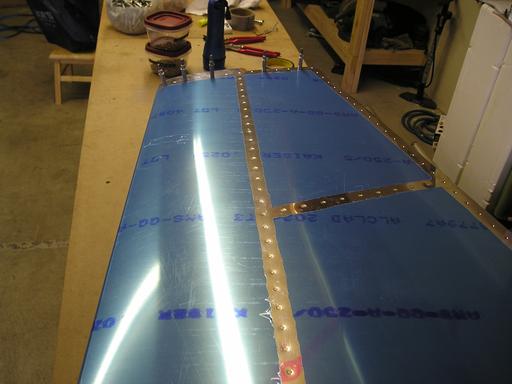

Riveting of forward spar and middle rib full size
Here all the rivets are done.
